Precision Engineering Excellence: UWE Dalian’s Uncompromising Process Control System
In the rapidly evolving landscape of renewable energy, wind turbines are scaling to larger megawatt capacities and venturing into far-reaching offshore environments. At the heart of these massive turbines, wind turbine bearings serve as the "backbone" of performance—their reliability, precision, and durability directly dictate operational safety, energy efficiency, and service life. For Dalian United Wind Power Generation Bearing (UWE), quality is never a superficial claim but a non-negotiable commitment embedded in every stage of production. From raw material intake to final delivery, we have built a comprehensive, end-to-end Process Control System powered by cutting-edge testing technology and automated intelligent equipment. Our unwavering focus on micron-level precision ensures we deliver bearings that excel in the most extreme wind power conditions worldwide.
Comprehensive Quality Control: From Raw Materials to Finished Products
UWE’s process control covers the entire lifecycle of bearing production, with rigorous testing standards for every procedure and precise validation of key performance indicators. No defective products leave our facilities—every bearing is engineered to maintain stable performance under long-term cyclic loads and harsh operational environments.
1. Non-Destructive Testing: Uncovering Hidden Defects to Safeguard Core Reliability
Non-destructive testing (NDT) is the first and most critical line of defense in ensuring bearing quality. UWE has deployed industry-leading UT (Ultrasonic Testing) Equipment and Automated MT (Magnetic Particle Testing) Equipment to achieve 100% full-coverage inspection of internal and surface defects, eliminating potential risks at the source.

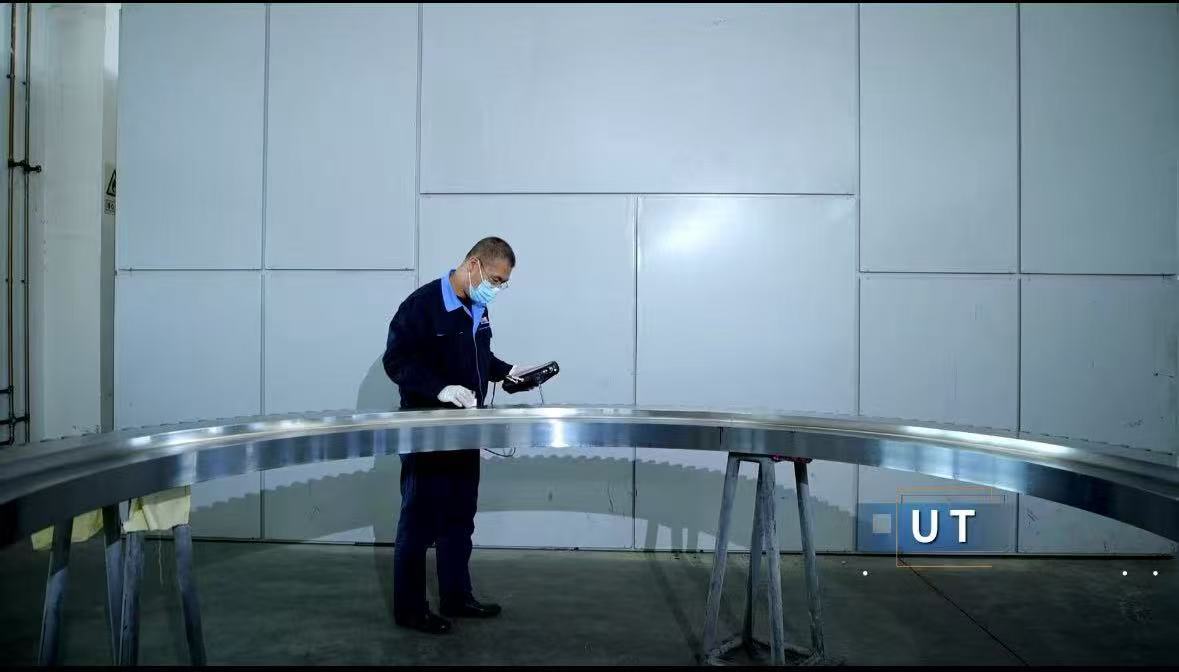

UT Testing Equipment: This advanced system conducts comprehensive internal defect inspections on raw materials, forgings, and finished bearings. It accurately identifies internal flaws such as cracks, inclusions, and porosity—defects that could compromise structural integrity and service life. Adhering to UWE’s strict technical standards and customer requirements, the high-sensitivity, high-stability testing results guarantee that no internal defects affect performance. This ensures the bearings’ structural strength and reliability meet the highest global benchmarks.

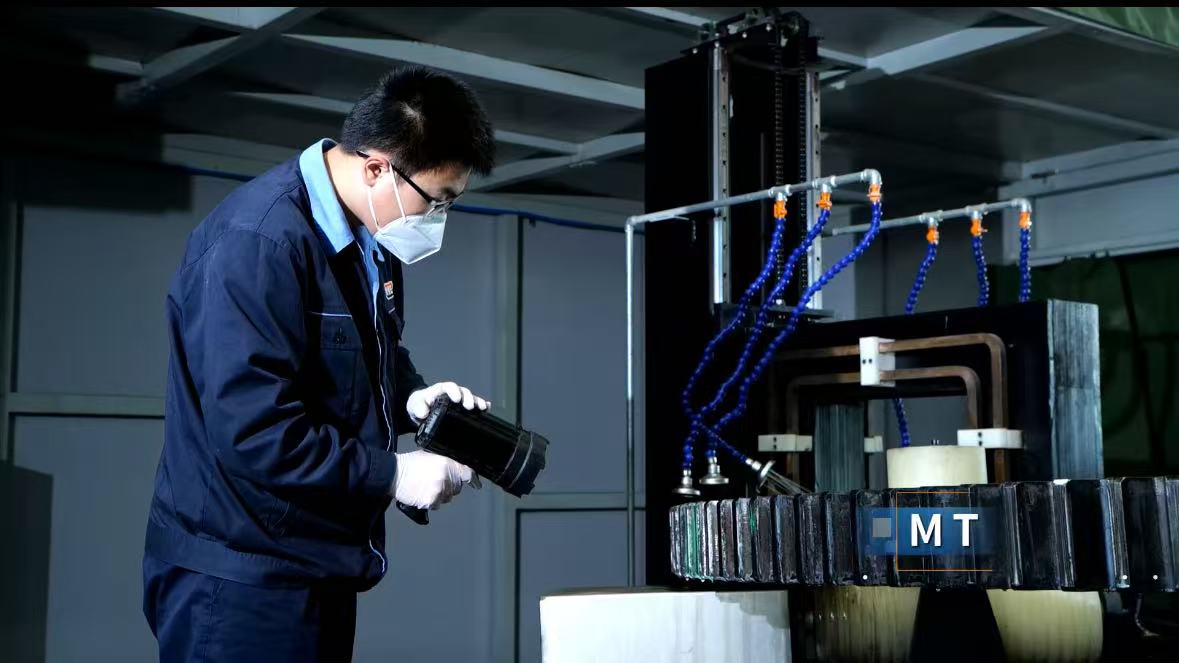

Automated MT Testing Equipment: This solution delivers full-automatic inspection of surface and near-surface defects on bearings. It precisely detects tiny cracks, folds, and other surface flaws, with real-time visualization of defect location, size, shape, and severity. The automated process not only drastically boosts inspection efficiency but also eliminates human error, ensuring no surface escapes detection. This safeguards the bearings’ long-term operational stability and extends their service life in wind power applications.
UT Testing Equipment: This advanced system conducts comprehensive internal defect inspections on raw materials, forgings, and finished bearings. It accurately identifies internal flaws such as cracks, inclusions, and porosity—defects that could compromise structural integrity and service life. Adhering to UWE’s strict technical standards and customer requirements, the high-sensitivity, high-stability testing results guarantee that no internal defects affect performance. This ensures the bearings’ structural strength and reliability meet the highest global benchmarks.
Automated MT Testing Equipment: This solution delivers full-automatic inspection of surface and near-surface defects on bearings. It precisely detects tiny cracks, folds, and other surface flaws, with real-time visualization of defect location, size, shape, and severity. The automated process not only drastically boosts inspection efficiency but also eliminates human error, ensuring no surface escapes detection. This safeguards the bearings’ long-term operational stability and extends their service life in wind power applications.
2. Process Precision Testing: Controlling Every Micron for Unmatched Performance
The performance of wind turbine bearings hinges on the precision of every manufacturing process. UWE has equipped key process links with dedicated high-precision testing equipment, minimizing process errors to the extreme.

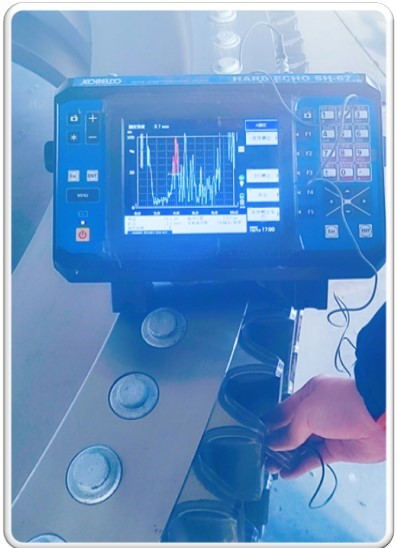

Kobelco Hardening Layer Depth Tester (Japan): This precision instrument enables 0.01mm-level detection of hardening layer depth after heat treatment. It can reliably measure induction hardening layers as thin as 0.7mm, verifying the quality of the hardened layer with exceptional sensitivity. This ensures a perfect balance between surface hardness, wear resistance, and core toughness—allowing the bearings to withstand extreme wind loads and maintain stable performance over their lifespan.

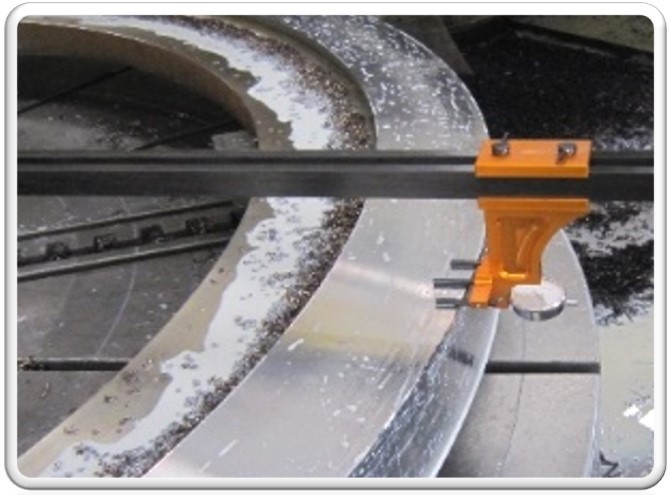

Carbon Fiber Measuring Gauge: Crafted from lightweight, high-rigidity carbon fiber, this measuring tool features low friction resistance, minimal deformation, and wear-proof durability. It is used for daily inspection of critical bearing dimensions, delivering stable and accurate measurement data to ensure strict dimensional control during production.
Kobelco Hardening Layer Depth Tester (Japan): This precision instrument enables 0.01mm-level detection of hardening layer depth after heat treatment. It can reliably measure induction hardening layers as thin as 0.7mm, verifying the quality of the hardened layer with exceptional sensitivity. This ensures a perfect balance between surface hardness, wear resistance, and core toughness—allowing the bearings to withstand extreme wind loads and maintain stable performance over their lifespan.
Carbon Fiber Measuring Gauge: Crafted from lightweight, high-rigidity carbon fiber, this measuring tool features low friction resistance, minimal deformation, and wear-proof durability. It is used for daily inspection of critical bearing dimensions, delivering stable and accurate measurement data to ensure strict dimensional control during production.

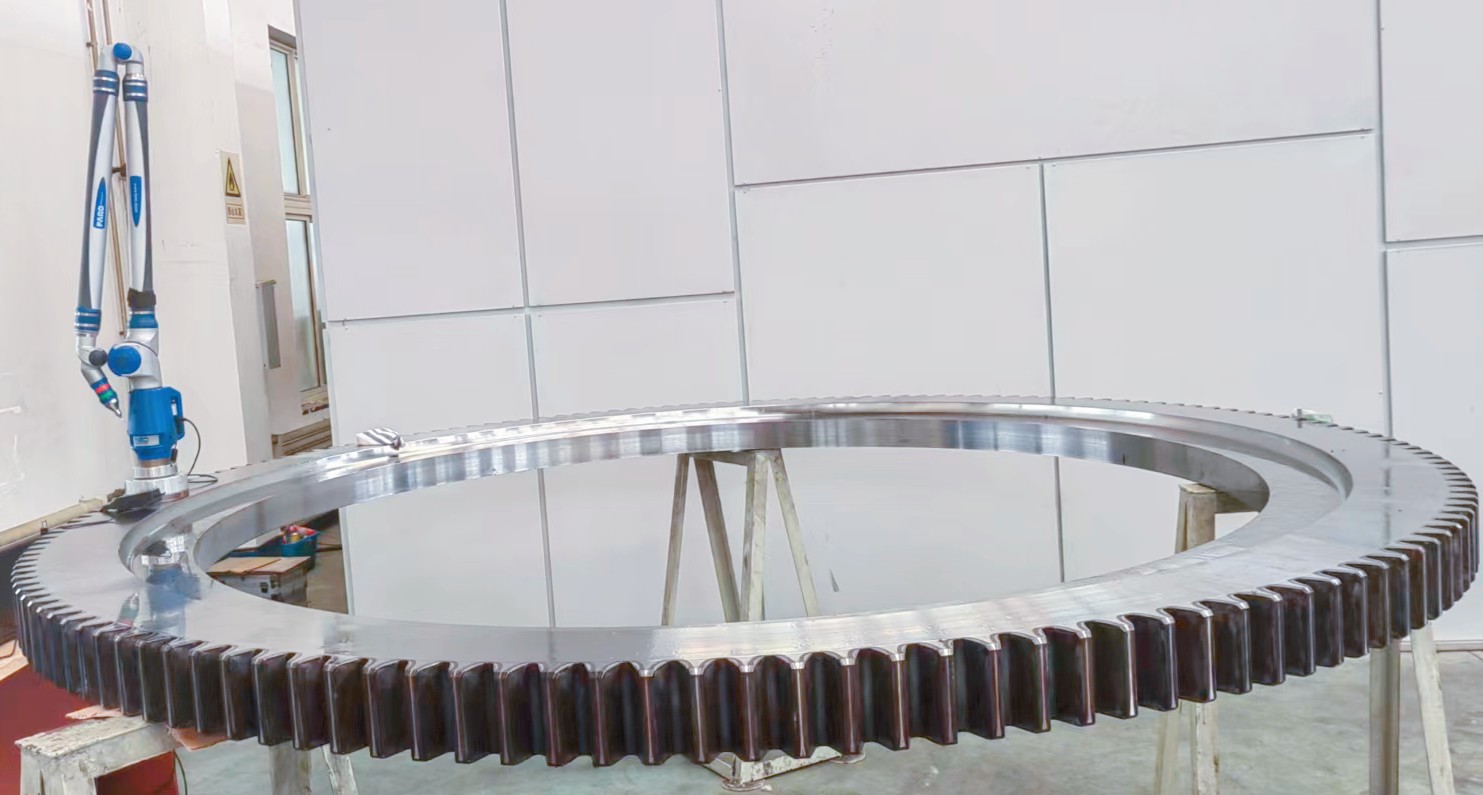

FARO Coordinate Measuring Arm: As a high-precision portable measurement solution, this device conducts 100% full inspection of key bearing characteristics—including bore diameter, tooth profile, roundness, and mounting hole position. It accurately verifies geometric dimensioning and tolerances (GD&T) on-site, ensuring every bearing meets design specifications. This precision is critical for seamless assembly and stable operation in wind turbines, providing a core guarantee for product reliability.
3. Automated Assembly: Intelligent Technology Delivering Micron-Level Precision
Beyond comprehensive inspection, UWE elevates assembly accuracy through intelligent automation, enabling real-time digital management of the entire assembly process.

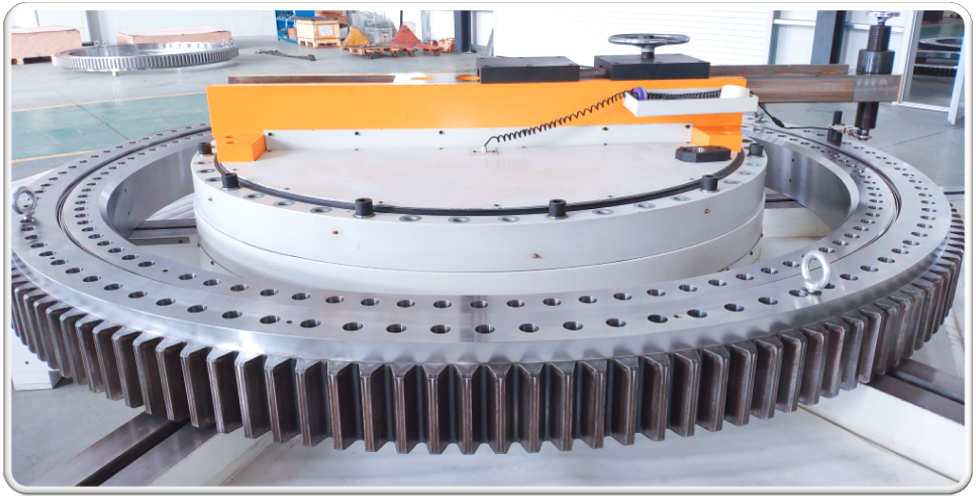

Automated Bearing Assembly Machine: This intelligent system enables real-time monitoring and measurement of critical parameters such as assembly torque during bearing assembly. It controls assembly precision at the micron level, eliminating human error and ensuring optimal bearing clearance and preload. By standardizing the assembly process, we guarantee every bearing delivers peak performance and maximizes service life, ready to operate efficiently in wind power systems worldwide.
Automated Bearing Assembly Machine: This intelligent system enables real-time monitoring and measurement of critical parameters such as assembly torque during bearing assembly. It controls assembly precision at the micron level, eliminating human error and ensuring optimal bearing clearance and preload. By standardizing the assembly process, we guarantee every bearing delivers peak performance and maximizes service life, ready to operate efficiently in wind power systems worldwide.
Quality as the Foundation, Technology as the Driving Force: Empowering Global Wind Energy
For UWE, process control is not just a production requirement—it is a commitment to our customers and the renewable energy industry. As wind turbines grow larger and offshore wind power expands, the demand for higher precision, reliability, and longevity in wind turbine bearings continues to rise. UWE remains steadfast in adopting the highest industry standards, continuously upgrading testing technology and automated equipment to refine our process control system.
At Dalian United Wind Power Generation Bearing, we are dedicated to building a more sustainable energy future—one precision-engineered bearing at a time.
