BALL AND ROLLER COMBINATION SLEWING BEARING

Name: BALL AND ROLLER COMBINATION SLEWING BEARING
Brand: uwe-bearing
Rating: 5 (1 reviews)

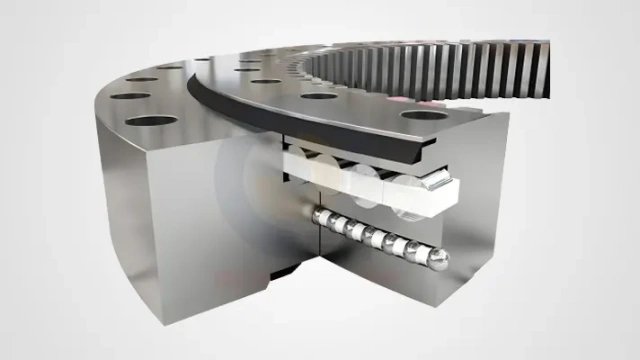

The ball and roller combination slewing bearing integrates ball and roller structures innovatively. It adopts a composite raceway design, enabling it to withstand axial force, radial force and overturning moment concurrently.

This structure combines the flexible load performance of ball bearings and the high rigidity of roller bearings. With compact layout and high structural stability, it delivers excellent wear resistance and long service life.

It is widely applicable for medium-to-heavy duty equipment, perfectly adapting to complex and variable operating conditions of engineering machinery and industrial rotary devices.

GET A QUOTE

Description

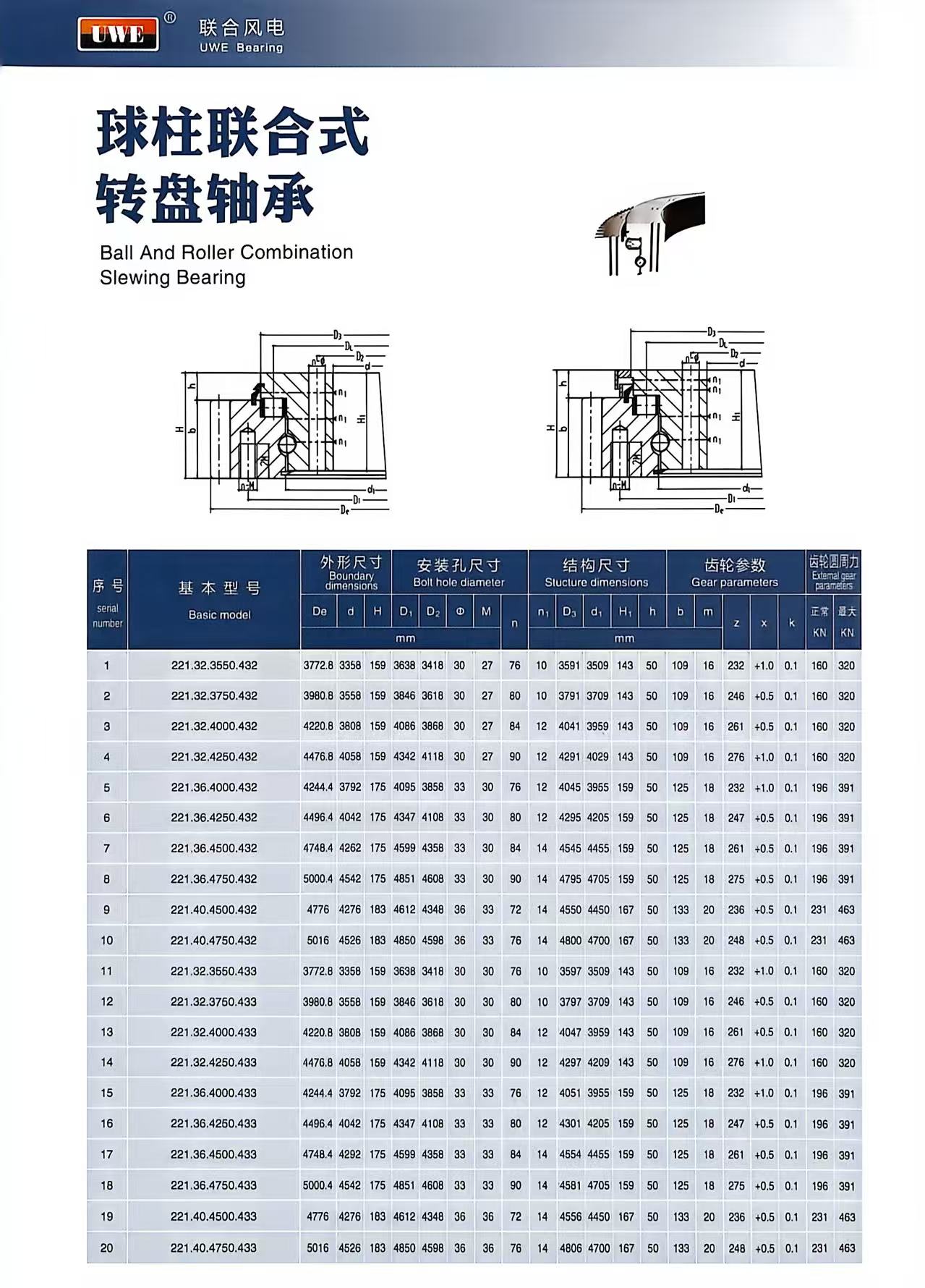

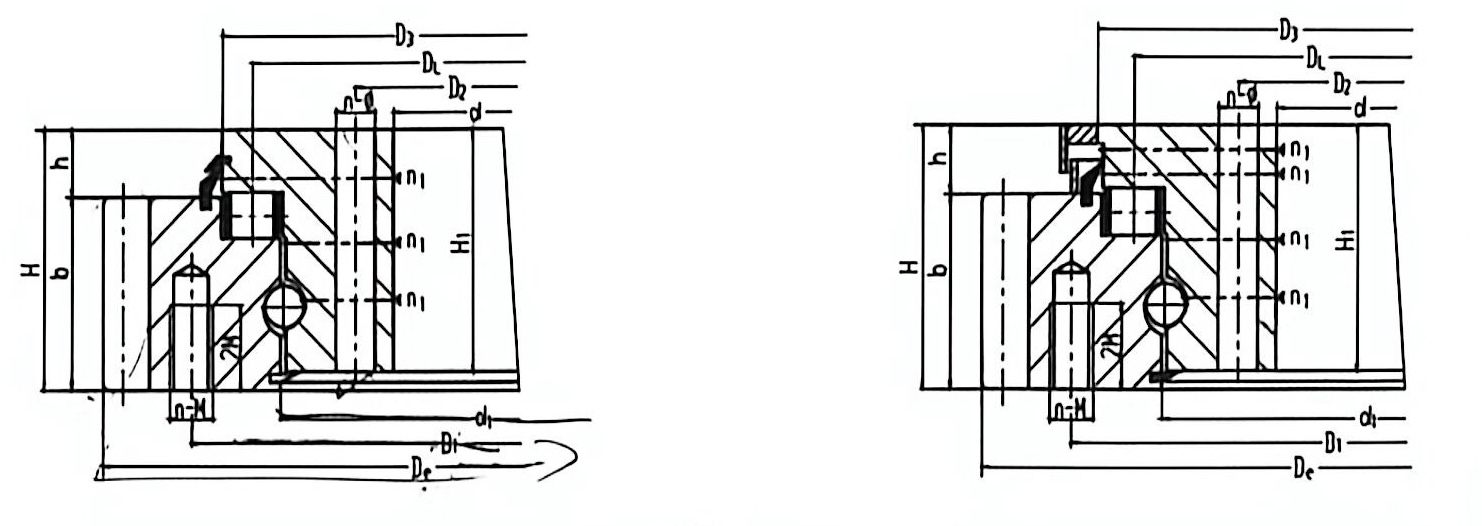

序号 Serial Number	基本型号 Basic Model	外形尺寸 Boundary Dimension			安装孔尺寸 Bolt hole Diameter					结构尺寸 Structure Dimension					齿轮参数 Gear Parameters					齿轮圆周力 External gear parameters
		De	d	H	D₁	D₂	Φ‌	M	n	n₁	D₃	d₁	H₁	h	b	m	z	x	k	正常 KN	最大 KN

		mm								mm
1	221.32.3550.432	3772.8	3358	159	3638	3418	30	27	76	10	3591	3509	143	50	109	16	232	+1.0	0.1	160	320

2	221.32.3750.432	3980.8	3558	159	3846	3618	30	27	80	10	3791	3709	143	50	109	16	246	+0.5	0.1	160	320

3	221.32.4000.432	4220.8	3808	159	4086	3868	30	27	84	12	4041	3959	143	50	109	16	261	+0.5	0.1	160	320

4	221.32.4250.432	4476.8	4058	159	4342	4118	30	27	90	12	4291	4029	143	50	109	16	276	+1.0	0.1	160	320

5	221.36.4000.432	4244.4	3792	175	4095	3858	33	30	76	12	4045	3955	159	50	125	18	232	+1.0	0.1	196	391

6	221.36.4250.432	4496.4	4042	175	4347	4108	33	30	80	12	4295	4205	159	50	125	18	247	+0.5	0.1	196	391

7	221.36.4500.432	4748.4	4262	175	4599	4358	33	30	84	14	4545	4455	159	50	125	18	261	+0.5	0.1	196	391

8	221.36.4750.432	5000.4	4542	175	4851	4608	33	30	90	14	4795	4705	159	50	125	18	275	+0.5	0.1	196	391

9	221.40.4500.432	4776	4276	183	4612	4348	36	33	72	14	4550	4450	167	50	133	20	236	+0.5	0.1	231	463

10	221.40.4750.432	5016	4526	183	4850	4598	36	33	76	14	4800	4700	167	50	133	20	248	+0.5	0.1	231	463

11	221.32.3550.433	3772.8	3358	159	3638	3418	30	30	76	10	3597	3509	143	50	109	16	232	+1.0	0.1	160	320

12	221.32.3750.433	3980.8	3558	159	3846	3618	30	30	80	10	3797	3709	143	50	109	16	246	+0.5	0.1	160	320

13	221.32.4000.433	4220.8	3808	159	4086	3868	30	30	84	12	4047	3959	143	50	109	16	261	+0.5	0.1	160	320

14	221.32.4250.433	4476.8	4058	159	4342	4118	30	30	90	12	4297	4209	143	50	109	16	276	+1.0	0.1	160	320

15	221.36.4000.433	4244.4	3792	175	4095	3858	33	33	76	12	4051	3955	159	50	125	18	232	+1.0	0.1	196	391

16	221.36.4250.433	4496.4	4042	175	4347	4108	33	33	80	12	4301	4205	159	50	125	18	247	+0.5	0.1	196	391

17	221.36.4500.433	4748.4	4292	175	4599	4358	33	33	84	14	4554	4455	159	50	125	18	261	+0.5	0.1	196	391

18	221.36.4750.433	5000.4	4542	175	4851	4608	33	33	90	14	4581	4705	159	50	125	18	275	+0.5	0.1	196	391

19	221.40.4500.433	4776	4276	183	4612	4348	36	36	72	14	4556	4450	167	50	133	20	236	+0.5	0.1	231	463

20	221.40.4750.433	5016	4526	183	4850	4598	36	36	76	14	4806	4700	167	50	133	20	248	+0.5	0.1	231	463
